Telecommunication networking stranded high quality cat5e cable

Telecommunication Networking Stranded High Quality Cat5e
  • Seller Beijing Jianghaiyang Wire And Cable Co., Ltd.
  • Min. Order 50 Roll/Rolls cable
  • FOB Price US $58.5-60 /Roll

Item Details

Port: TIAN JIN
Supply Ability: 100000 Roll/Rolls per Month cable
Payment Terms: L/C,T/T,Western Union

Product Description

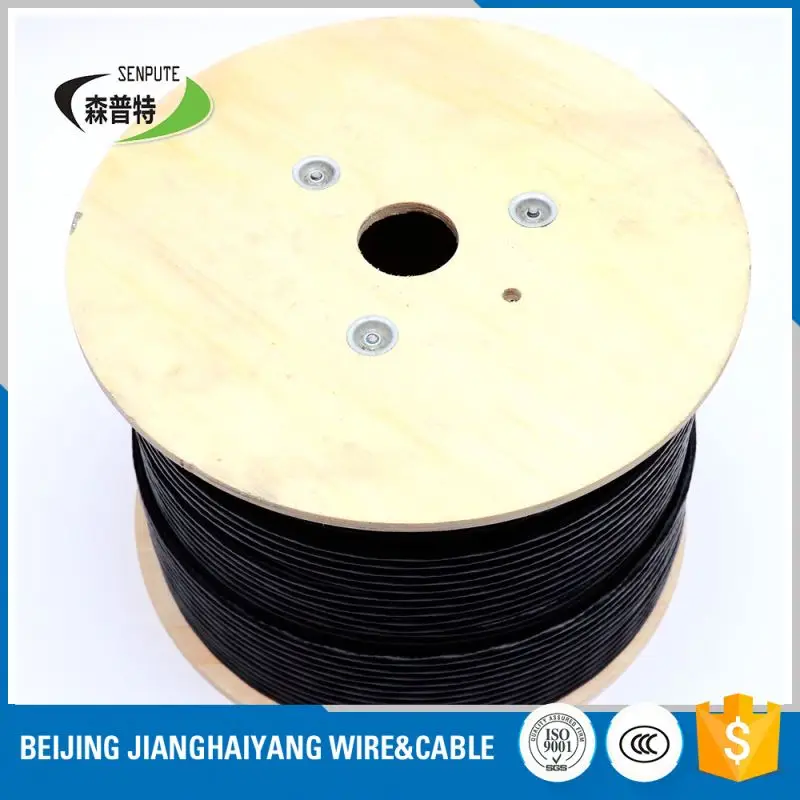

telecommunication networking stranded high quality cat5e cable

Product Structure

Conductor Diameter

24AWG Solid or Stranded Oxygenfree

Copper Wire

Insulation Material

HDPE

Insulation color

Orange, White/Orange, Blue, White/Blue,

Green, White/Green,Brown, White/Brown

Shield

Polyester tape+ Aluminum Foil

Drain Wire

Solid or Stranded Copper

Ripcord

Nylon rope

Jacket Material

PVC,

Jacket Diameter

5.8+/-0.2mm

Technical Parameters

Implementation of standards

YD/T1019, ISO/IEC11801, TIA/EIA568C Rated

Rated Temperature

70°C

Specification

SINGI NO

SPT-5E-01D Style

specification

4Pairs S/FTP CAT5E

Package

Meter

305m/305m

Package ways

Moisture proof Carton

Application:

Cat5e is suitable for critical LAN applications or Structured Cabling Systems, provide 100MHz broadband within 90M distance, the application rate is 100Mbps. Compared with UTP Cat5e cable, increase Aluminum Foil, increase noise immunity when the signal transmission, also can be used for anti-electromagnetic interference environment, have signal shielding and confidentiality. You can choose Solid Copper or Stranded Copper, Jacket has PVC or LSZH, you can choose easily according to your need.
