Telecommunication Equipment ST Simplex Singlemode fiber Optic Patch Cord

Telecommunication Equipment ST Simplex Singlemode Fiber
  • Seller Shenzhen Foclink Communication Tech. Co., Ltd.
  • Min. Order 1 Piece/Pieces Telecommunication Equipment ST patch cord
  • FOB Price US $0.75-1.99 /Piece

Item Details

Port: SHENZHEN
Supply Ability: 10000 Piece/Pieces per Day Telecommunication Equipment ST patch cord
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Product Description

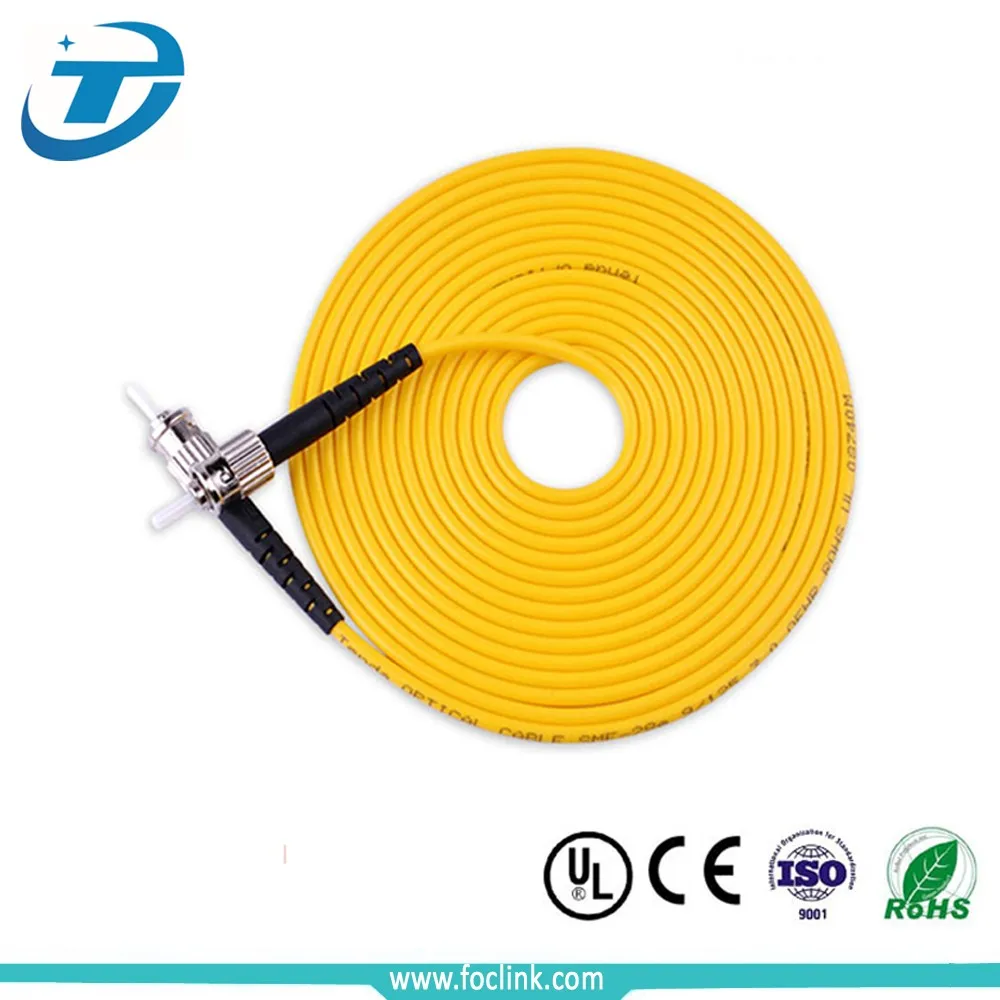

Telecommunication Equipment ST Simplex Singlemode fiber Optic Patch Cord

Product Description

A patch cord is a fiber optic cable used to attach one device to another for signal routing. Normally, there are 4 types connector: FC/SC/LC/ST.. 3types ferrule: PC, UPC, APC…

ST simplex singlemode fiber optic patch cord stands for Straight Tip- a quick release bayonet style connector. ST connectors are cylindrical with twist lock coupling. They are push-in and twist types.

Features:

Complying with IEC, Telcordia GR-326-CORE, YD-T 1272.3-2005,standard.
Low insertion loss, high return loss
High dense connection, easy for operation
High credibility and stability
Good in repeatability and exchangeability

Application:
Testing equipment
FTTX+LAN
Optical fiber CATV
Optical communication system
Telecommunication

Product Overviews

ST Custom fiber optic jumper options include.
ST/PC (Physical Contact) Polish
ST/UPC (Ultra Physical Contact) polish

ST Single Mode 9/125µm SMF Fiber
ST Multimode 62.5/125µm MMF Fiber
ST Multimode 50/125µm MMF OM2 Fiber
ST Multimode 50/125µm MMF OM3 10Gb Laser Optimized Fiber

ST (LSZH) Low smoke zero halogens Jacket
ST PVC Jacket

Cable Diameters Include 900µm (.9mm), 1.6mm, 1.8mm, 2.0mm, 3.0mm

ST Simplex cables or ST Duplex Cables are also available in optional colors.

ST Standard boot, ST 45° angled boot, ST 90°angled boot or short boot options.

Corning Fiber Optic Cable, or Fiber One Fiber.

How to correctly choose between PVC, LSZH?
PVC Cable: PVC cable resistant to oxidation and degradation, is used for horizontal runs between the table.
It is also work for vertical runs if the building features a contained ventilation system running through the duct work.

LSZH Cable: LSZH cable has a special flame-retardant coating, and excellent fire safety characteristics of low smoke, low toxicity and low corrosion.
It is same to PVC cable for horizontal runs between the table.
How to Choose The Right Fiber Optic Cable Type?
Designation Fiber Dia.
(μm)
Type Fast Ethernet
100BASE-FX
1 Gigabit Ethernet
1000BASE-SX
1 Gigabit Ethernet
1000BASE-LX
10 Gigabit Ethernet
10GBASE
40 Gigabet Ethernet
40GBASE-SR4
100 Gigabet Ethernet
100GBASE-SR4
OM1 62.5/125 Multimode 2000 Meters 275 Meters 550 Meters
(mode conditioning patch cable required)
33 Meters Not supported Not supported
OM2 50/125 Multimode 550 Meters 82 Meters Not supported Not supported
OM3 (Laser Optimized) 50/125 Multimode 550 Meters 300 Meters 100 Meters 100 Meters
OM4 (Laser Optimized) 50/125 Multimode 400 Meters 150 Meters 150 Meters
Singlemode 9/125 Singlemode 5km at 1310nm 5km at 1310nm 10km at 1310nm
Our Factory

Foclink Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments. The main products of Foclink include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry.

Certifications

FAQ
1. What is the warranty on the parts you sell?
One year's warranty for all the products,even 3 years' warranty for some kinds.

2. What payment methods do you offer?
T/T, Western Union, MoneyGram,cash,PayPal,etc. are available.

3. What is lead time?
1-5 working days for standard products.
