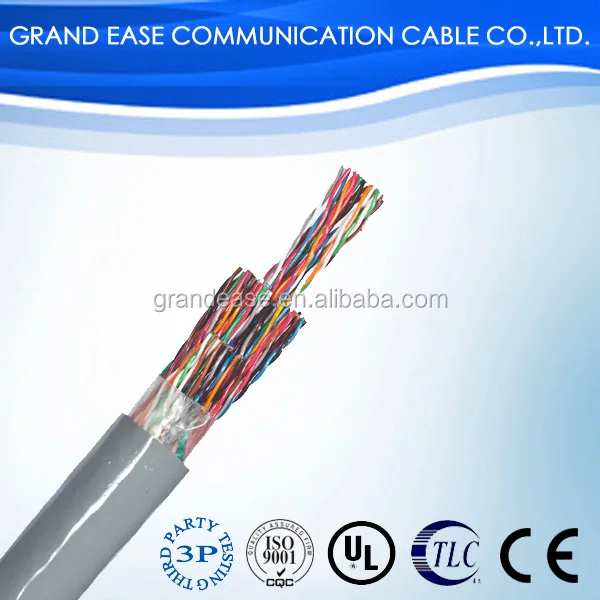

Telecommunication cat3 telephone lan network cable

Telecommunication Cat3 Telephone Lan Network Cable
  • Seller Grand Ease Communication Cable Co., Ltd.
  • Min. Order 5 Meter/Meters
  • FOB Price US $0.01-0.99 /Meter

Item Details

Port: Shunde or Shenzhen
Supply Ability: 4066666 Meter/Meters per Month
Payment Terms: L/C,D/A,D/P,T/T

Product Description

network cable telecommunication cable cat3 telephone cable lan cable network cable

Description:

-Reference strandard:ISO/IEC11801& TIA/EIA-568C

-Bare copper

-Color-coded PE insulation

-Lead free PVC or LSZH or PE jacket

-Fire classionfication

PVC IEC60332-1

LSZH IEC60332-1/IEC61034/IEC60754

LSFRZH IEC60332-3C/IEC61034/IEC60754

-Working temperature:-20°C~+60°C

-Insulation temperature:0°C~+50°C

-Min Insulation bending radius:4*D

Application:

-10Base-T

-100Base-T4

-Working frequency 1-16Mhz

Product Characteristics:

Conductor resistance ≤95Ω/km
Conductor DC Resistance Unbalance ≤2.5%
Dielectric strength(conductor) 1000V/1min PASS 2KV/3S PASS
Insulation resistance ≥5000M Ω km

Product Transmission Characteristics:

Frequency
IL NEXT PSNEXT FEXT ZO RL SRL
MHZ dB ≥dB dB dB /100m Ω dB ≥ dB
1.0 2.6 41.3 41.3 39.0 100±15 12.0 12.0
4.0 5.6 32.3 32.3 27.0 100±15 12.0 12.0
8.0 8.5 27.8 27.8 20.9 100±15 12.0 12.0
10.0 9.7 26.3 26.3 19.0 100±15 12.0 12.0
16.0 13.1 23.2 23.2 14.9 100±15 10.0 10.0

Buyer's specification's are welcomed

Product Structure:
