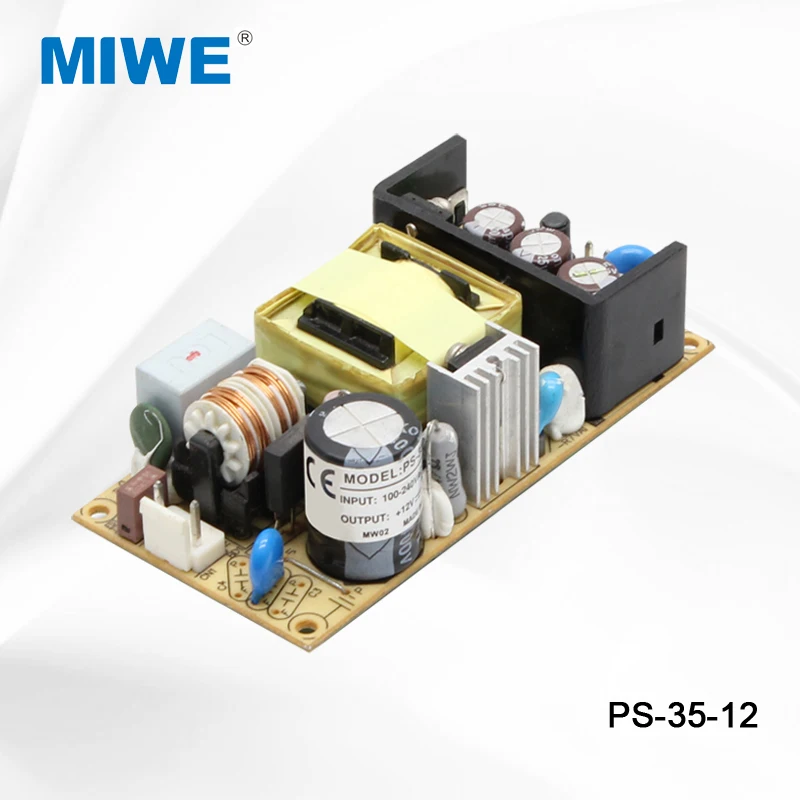

MIWE Electrical Equipment PS 35 12 open frame 35w 12v single output switching power supply

MIWE Electrical Equipment PS 35 12
  • Seller Yueqing Mingwei Electric Technology Co., Ltd.
  • Min. Order 1 Piece/Pieces
  • FOB Price US $6.5-7.5 /Piece

Item Details

Port: Shanghai or Ningbo
Supply Ability: 50000 Piece/Pieces per Month
Payment Terms: L/C,T/T,Western Union,Paypal

Product Description

MIWE Electrical Equipment PS-35-12 open frame 35w 12v single output switching power supply

1. AC input range selectable by switch

2. Protections: Short circuit / Overload / Over voltage / Over temperature

3. 100% full load burn-in test

4. Low cost, high reliability

5. 24 months warranty

MODEL

PS-35-5

PS-35-7.5

PS-35-12

PS-35-15

PS-35-24

PS-35-48

OUTPUT

DC VOLTAGE

5V

7.5V

12V

15V

24V

48V

RATED CURRENT

6A

4.7A

3A

2.4A

1.5A

0.75A

RATED POWER

30W

35.25W

36W

36W

36W

36W

RIPPLE & NOISE (max.) Note.2

100mVp-p

100mVp-p

120mVp-p

150mVp-p

200mVp-p

240mVp-p

VOLTAGE ADJ.RANGE

4.75~5.5V

7.13~8.25V

10.8~13.2V

13.5~16.5V

21.6~26.4V

43.2~52.8V

INPUT

VOLTAGE RANGE

90~264VAC 127~370VAC

FREQUENCY RANGE

47~440Hz

EFFICIENCY (Typ.)

78%

80%

81%

81%

85%

84%

AC CURRENT (Typ.)

0.75A/115VAC 0.5A/230VAC

INRUSH CURRENT(Typ.)

CLOD START 23A/115VAC 45A/230VAC

LEAKAGE CURRENT

<2mA /240VAC

PROTECTION

OVERLOAD

105~150% rated output power

Protection type: Constant current limiting, recovers automatically after fault condition is removed

OVERVOLTAGE

5.75~6.75V

8.63~10.5V

13.8~16.2V

17.25~20.25V

27.6~32.4V

55.2~62.4V

Protection type: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.

-20 ~ +65°C (Refer to "Derating Curve") 20 ~ 90% RH non-condensing

WORKING HUMIDITY

20 ~ 90% RH non-condensing

STORAGE TEMP., HUMIDITY

-20-+85°C, 10~95% RH

TEMP. COEFFICIENT

±0.05%/℃ (0~50℃)

SAFETY &

EMC (Note 4)

SAFETY STANDARDS

UL60950-1,TUVEN60950-1 approved, Design refer to EN50178

WITHSTAND VOLTAGE

l/P-0/P:3KVAC

ISOLATION RESISTANCE

l/P-O/P: 100M Ohms / 500VDC / 25℃ 70% RH

EMC EMISSION

Compliance to EN55011, EN55022 (CISPR22) Class B, EN61000-3-2,-3

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6, 8,11, EN55024, EN61000-6-2, EN61204-3, heavy industry level, criteria A

OTHERS

MTBF

588.8Khrsmin. MIL-HDBK-217F(25℃)

DIMENSION

101.6*50.8*24mm (W*H*D)

PACKING

0.124Kg;96pcs/12.9Kg/0.8UFT
