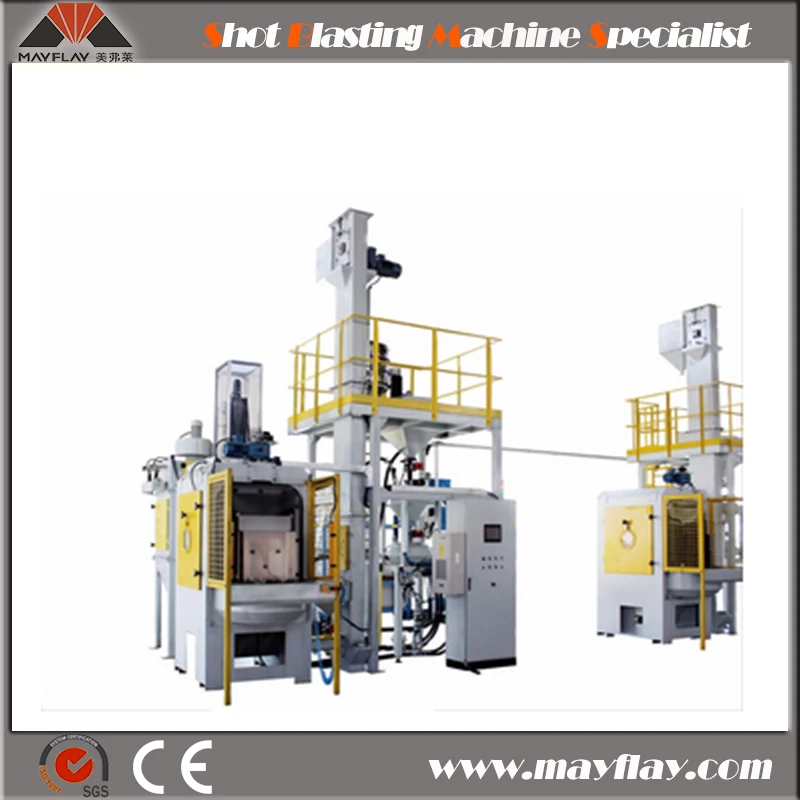

Mayflay Environment Protection Rotating Table Type Shot Blasting Machine

Mayflay Environment Protection Rotating Table Type
  • Seller Mayflay Machinery (Huizhou) Co., Ltd.
  • Min. Order 1 Set/Sets
  • FOB Price US $20000-80000 /Set

Item Details

Port: Shenzhen
Supply Ability: 25 Set/Sets per Month Environment Protection Rotating Table Type Shot Blasting Machine
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,The corporation

Product Description

Product Description
Shot Peening Description:

1.Shot peening is a cold working process used to produce a compressive residual stress layer and modify the mechanical properties of metals. It entails impacting a surface with shot (round metallic, glass, or ceramic particles) with a force sufficient to create plastic deformation. Peening a surface spreads it plastically, causing changes in the mechanical properties of the surface.

2.The main benefit of shot peening is the delay or prevention of cracks in highly tensile stressed alloy components.

3.We can alter these undesirable manufacturing and operational tensile stresses to life enhancing residual compressive stresses therefore extending component life.

Shot Peening Main Feature:


1.Using elevator pill material recycling system to meet the maximum recovery of 15 guns.

2.Using advanced control system ,In accordance with SAE AMS - 2430 standard.

3.Integrated design, small floor space.

4.Using peach-shaped double-tank shot peening system, can achieve continuous uninterrupted shot peening.

5.Dust catcher using advanced secondary filtration ,dust emission less than 5mg/m³.

6.Assembly power is about 6.43 kw, more energy efficient.

180° Reversal Rotary Table Shot Peening Machine MRT4-80L2-4 Technology Data:

Name
180° Reversal Rotary Table Shot Peening Machine Parameter Form
Model
MRT4-80L2-4
MRT4-80L2-4E
MRT4-80L2-4H
NO.
Machine Parameter Configuration
Economical
High Quality
1
Application

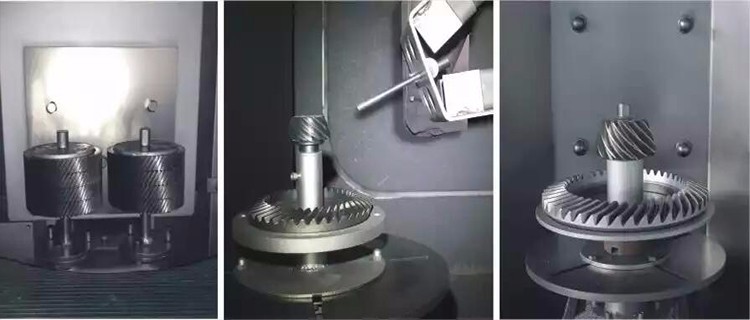

Automobile Transmission Gear/Gear Shaft
2
Size:L*W*H(mm)
4150*4000*5550
3
Parts'Maximum Diameter(mm)
200
4
Parts'Maximum Weight (kg)
30
5
Parts'Maximum Height(mm)
500
6
Parts Shot Peening Position Maximum Height(mm)
400
7
Spray Gun Quantity(Branch)
4 Branches/8mm Boron Carbide Nozzle
8
Shot Peening Flow Capacity(kg)
5kg/min,10kg/min,15kg/min(Constant Flow Capacity)
0—15kg/min
9
Shot Peening Pressure(bar)
1—6bar(Shot Peening Pressure Closed Loop Control System)
10
Suitable For Shot Peening(mm)
0.2—1.6mm Steel Cut Wire Shot/Cast Steel Shot
11
Capacity(Planetary gear as an example)
300 Piece/H
12
Dust Emission(mg/m³)
5mg/m³
13
Noise(Shot Peening Pressure≤3.5bar)
≤78db
14
Total Power(kw)
6.43
6.88
15
Compressed Air Loss(When Shot Peening Pressure=5bar)
20Nm³/min
16Nm³/min
Detailed Images

Shot Peening Machine Parts 1

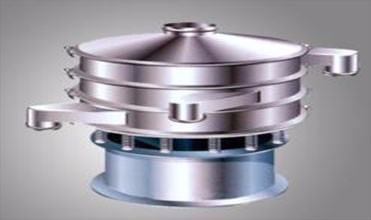

Name: Vibrating screen
Brand: SWECO
Original: U.S.A.
Describe:
1. It is refined to screen steel shot, To ensure steel shot size are uniform.
2. Smooth vibration, low noise, easy to change .
3. Vibration amplitude:±5°

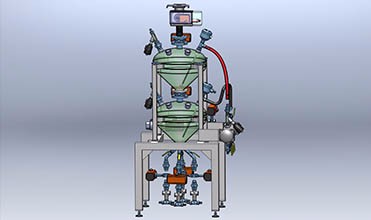

Shot Peening Machine Parts 2

Name: Shot Peening System
Brand: Mayflay
Original: China
Describe:
1. Double pressure tank system, peach type design, steel shot flow is good.
2. Can be continuous uninterrupted to shot peening.

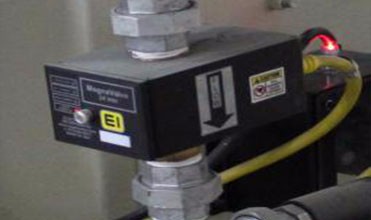

Shot Peening Machine Parts 3

Name: EI Electromagnetic Flow Control Valve
Brand: EI
Original: U.S.A.
Describe:
1. To use communication module closed-loop control .
2. Through the electromagnetic induction control steel shot flow
3. The precision:±5%

Shot Peening Machine Parts 4

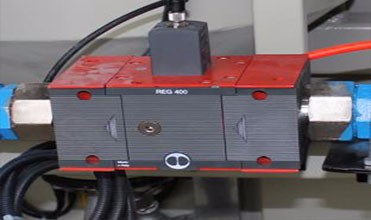

Name: Air Proportional Valve
Brand: MetalWork
Original: Italy

Describe:

1, To use closed-loop control by communication module.

2, To adjust pressure air flow .

3, The precision:±1%


Our Company

1.Mayflay Machinery (Huizhou)Co.,Ltd specializes in custom-designed shot peening and surface preparation solutions to provide a solution to your challenges.


2. Mayflay is with global innovation and global machine support, we can support your shot peening and surface preparation needs.


3.Mayflay offers a range of shot peening machines to meet the requirements of all industries from automotive to aerospace, renewable energy to medical. Mayflay has the capability to realize complete solutions with different blasting processes from one source, and with the ability to combine air and wheel blast technology, offers a range of innovative solutions to fulfill customers' needs.

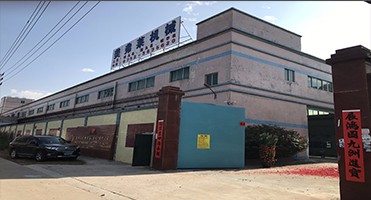

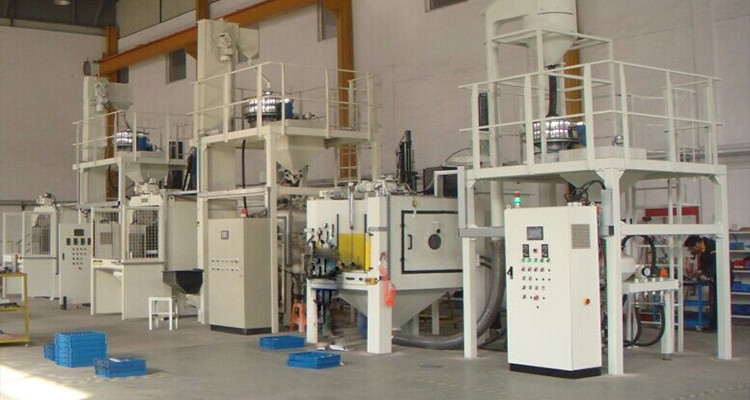

Factory

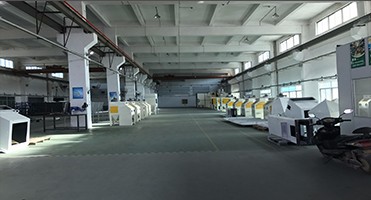

Workshop

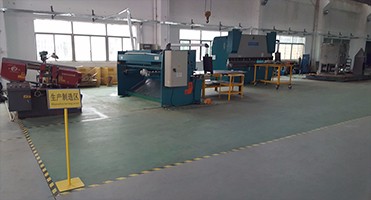

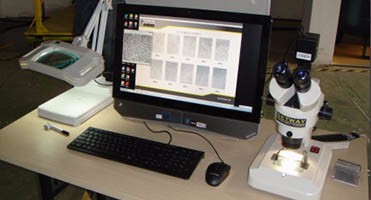

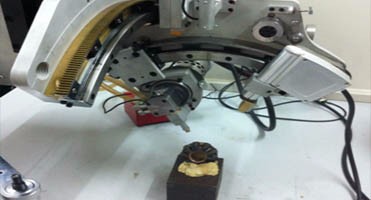

Processing Equipment

Team

Our Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* Technology solution and quotation

* We visit customer's factory and negotiations

* Customer visit our Factory and check our production.

After-Sales Service

* Engineer go to customer's factory install.

* Training how to install the machine.

* Training how to use the machine.

* Engineers available to service machinery overseas.

Customer Photo
Packing & Delivery
Packaging
Size
40GP
Weight
10-15T



Packaging Details
1. Inside is with film and wooden case package.

2. Whole machine put 1 container.
FAQ

Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-15 workdays if the goods are in stock. Or it is 15-60 workdays if the goods are not in stock, it is according to quantity and machine model.

Q: Do you test sample for free ?
A: Yes, we test the sample for free.But you will offer the freight.

Q: What is your terms of payment ?
A: Payment<=10000USD, 100% in advance. Payment>=10000USD, 30% T/T in advance ,balance before shipment.


Q: What is the shot peening machine ?

A: Shot peening is a cold working process used to produce a compressive residual stress layer and modify the mechanical properties of metals. It entails impacting a surface with shot (round metallic, glass, or ceramic particles) with a force sufficient to create plastic deformation. Peening a surface spreads it plastically, causing changes in the mechanical properties of the surface.


Q: What is your after-sales service?

A: * Engineer go to customer's factory install.
* Training how to install the machine.
* Training how to use the machine.
* Engineers available to service machinery overseas.


Q:How long time of your after-sale feedback ?

A: With 0-24 hours.


Q: What's your peening machine processing flow ?

A: Raw material to wire cutting to CNC processing to welding to painting to assemble to try running to packing to shipment etc.
