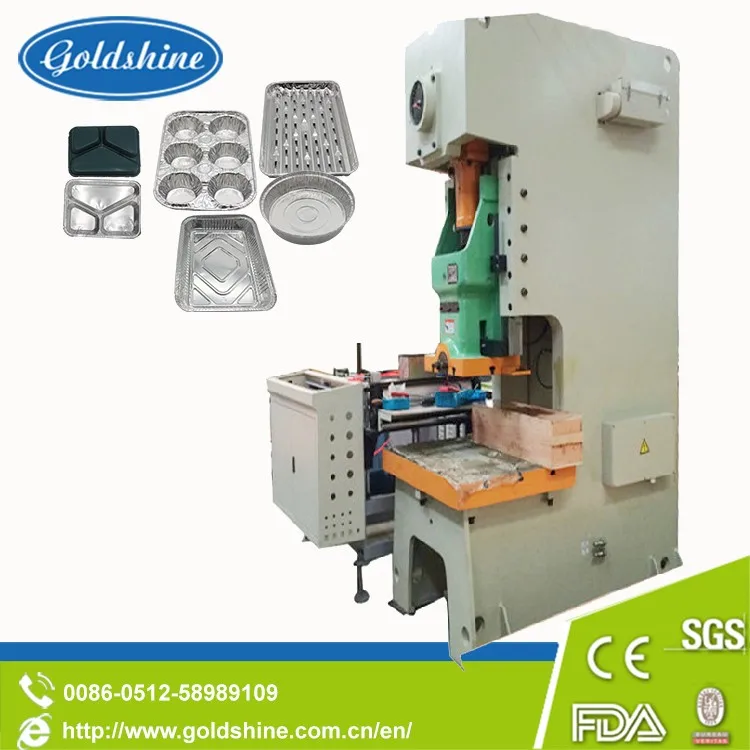

High Accuracy Aluminium Foil Container Making Machine

High Accuracy Aluminium Foil Container Making
  • Seller Zhangjiagang Goldshine Aluminum Foil Co., Ltd.
  • Min. Order 1 Set/Sets High Accuracy Aluminium Foil Container Making Machine
  • FOB Price US $10000-55000 /Set

Item Details

Port: shanghai
Supply Ability: 15 Set/Sets per Month High Accuracy Aluminium Foil Container Making Machine
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Product Description

Product Description

Performance Characteristic

1. This machine adopts Siemens CPU216 programmable logic container(PLC) as the controlling system. It is reliabale. The feeding length, producing speed and other parameter are easily set. It is integration of Gas & Electrical, centralized control, automated production.
2. Feeding, punching, scrap collecting is running automatically.
3.The accurate press adopts steel plates joining body, variable frequency speed regulation, dry type friction clutch to clutch-on-off,rigid over-load protector to protect the press. In short, this is a high accuracy and reliability press.
4. Feeding is controlled by stepper system, the feeding length is accurate and can be adjusted from 20mm to 999mm.

Main specifications and technical parameters

1.Feeding machine

Model
XWSL-40
XWSL-55
XWSL-70
XWSL-80
Max.Width of Roll
(mm)
350mm(13.78)
500mm(19.68)
650mm(25.59)
750mm(29.52)
Max.Unwind Roll Diameter(mm)
φ600mm(23.62)
φ600mm(23.62)
φ600mm(23.62)
φ600mm(23.62)
Feeding Speed
(m/min)
0-35
0-35
0-35
0-35
Feeding Length
(mm)
20-999
20-999
20-999
20-999
Feeding Accuracy
(mm)
±0.3
±0.3
±0.3
±0.3
Working Voltage
(V)
380/220
380/220
380/220
380/220
Total Power
(Kw)
1
1
1
1
Weight of machine
(Kg)
700
850
1000
1150
Dimension
(mm)
2000x1150x900
2000x1300x900
2000x1450x900
2000x1550x900
Optional: inflatable shaft 75mm, 150mm
embossing shaft

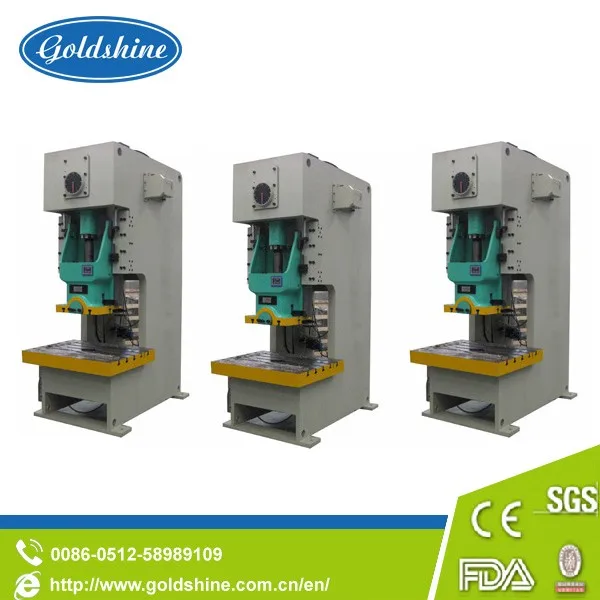

2.High Accuracy Press

Model
JF21-25
JF21-45
JF21-63
JF21-80
JF21-110
Nominal Pressure
(KN)

250

450

630

800

1100
Slide Block Strok
(mm)
80-160mm
100-260mm
120-260mm
140-260mm
150-260mm
Slide Stroke Per Minutes(/min)

90-60

70-50

70-50

60-45

50-40
Maximum Die Set Height(mm)
250-300
270-400
310-450
325-450
345-500
Die Set Height Adjustment(mm)
50mm(1.96)
60mm(2.36)
70mm(2.76)
80mm(3.15)
90mm(3.54")
Slide Bottom Size
(mm)
330*250mm
410*340mm
480*400mm
560*460mm
630*520mm
Stemhole Size(mm)
φ60*60mm
φ60*60mm
φ60*65mm
φ60*75mm
φ60*85mm
Bolster Surface Size
(mm)
700*320/800*480mm
810*440/990*750mm
870*520/1000*800
1000*600/1200*800
1100*680/1300*800mm
Total Power
(KW)
3-4
5.5
5.5-7.5
7.5-11
11-15
Weight(kg)
2800-3100
3800-4500
5500-6300
8000-9000
11000-12000
Overall Dimension Before Changed(mm)
1300*920*2160mm
1440*1080*2300mm
1610*1200*2500mm
2000*1300*2900mm
2030*1500*3130mm
Overall Dimension After Changed(mm)
1500*990*2200mm
1550*1150*2500mm
1800*1300*2700mm
2200*1450*3100mm
2300*1600*3300mm

3.Mould

Material Name of Mould
Steel Alloy
Origin
High Chrome Steel
DC53
Japan
High Chrome Steel
SKD11
Japan
9CrWMn
K460
Austria
Chrome Steel
Cr12mov
China
Chrome Steel
Cr12
China
Steel
S50C
Japan
The Mould holder is made of Precise hardware steel plate
covered with four column copper base steel ball .
Guide pare(Order)
Guide Pare(Material)
Mould Holder Material
MISUMI
SUJ2
S50C(Japan)

4.Scrap Collrcting Device

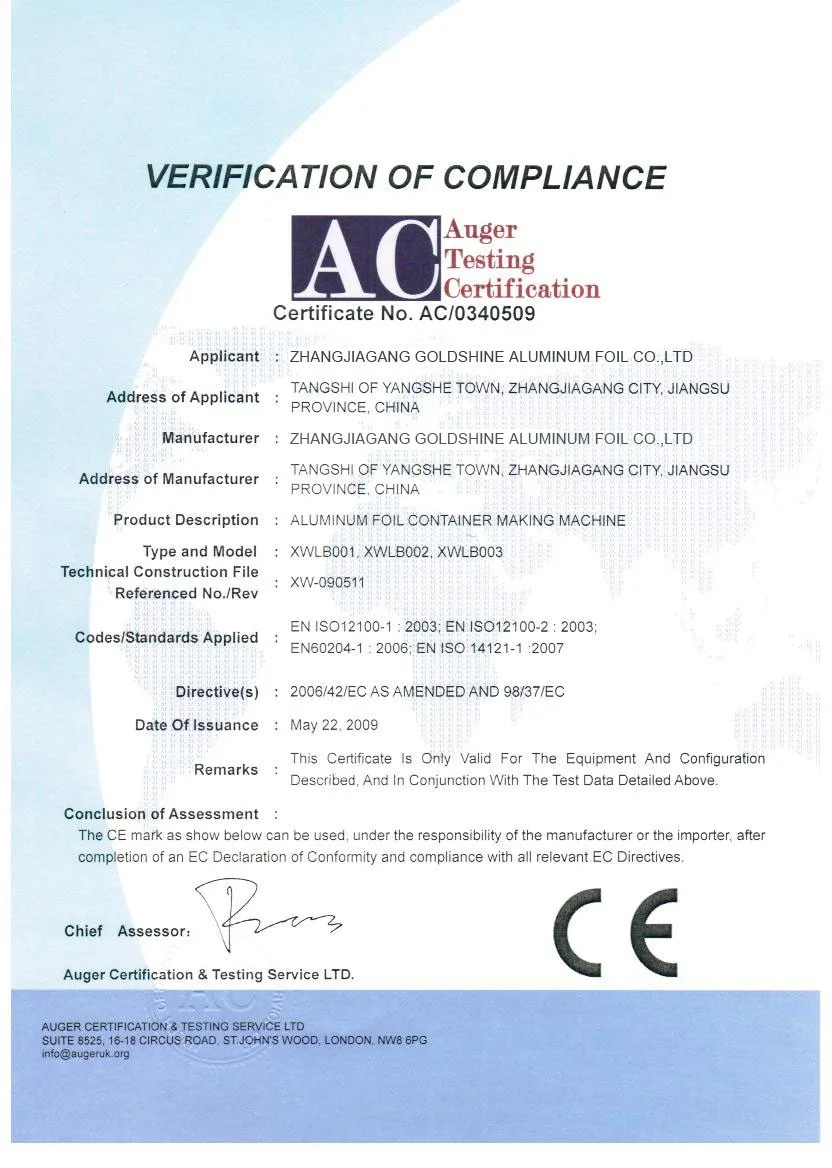

Certifications
Detailed Images

Machine Parts

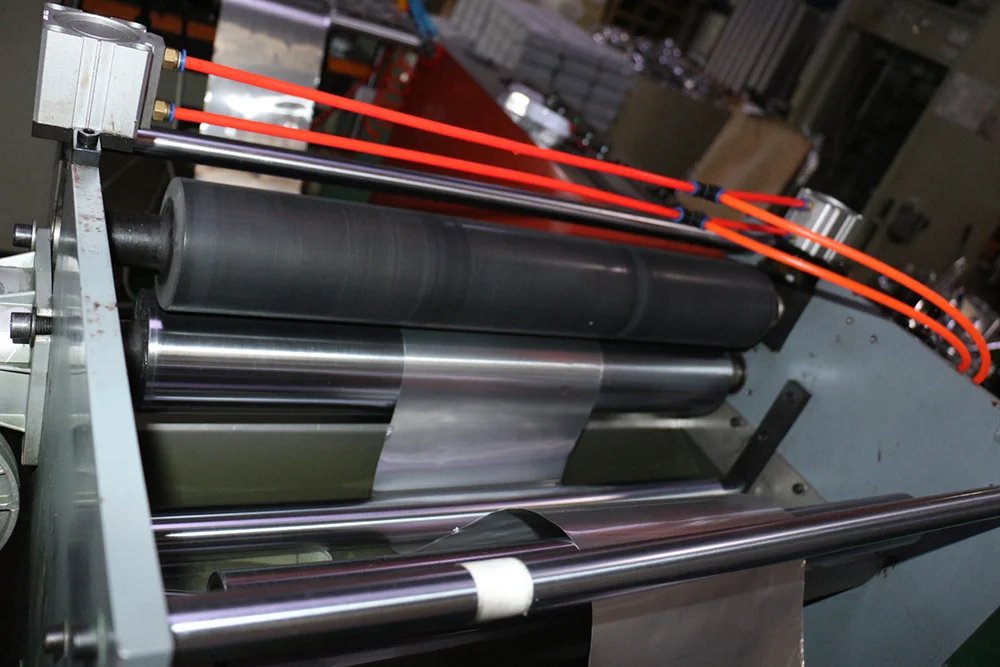

Name: Automatic feeding device

Brand: Goldshine

It can realize automatic oiling,automatic feeding ,automatic tracking features,automatically fedding 20-999mm in length.

Main Parts

Name: press parts
Flatten aluminum foil to make aluminum foil better fit the mold.

Machine Parts

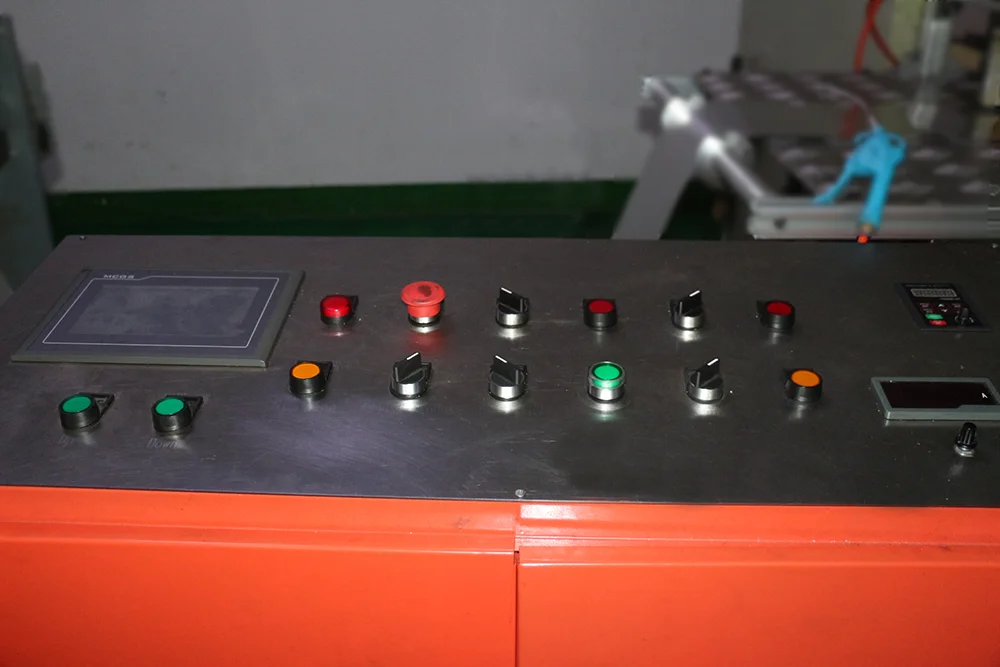

Name: Control system
Brand: PLC
Duplex safety valve are used to achieve emergent stop,inching,sing action and continuous operation. Electric adjustment of mould load height is adoped,enabling eady operation.

Main Parts

Name: Mould
The mould adopts aeroelasticily resilience device,and our advantages of the mould have kong shelf life,stable quality,high precision and resaonable desigh.

Packing & Delivery

Film packaging

Wooden box packaging

Hot Selling
Our Company
Customers
FAQ

Q: Are you trading company or manufacturer ?
A: We are manufacturer.

Q: How long is your delivery time?
A: Generally it is 15-35 days, it is according to your quantity.

Q: Can you do the machines' appearance design for us?
Yes. We have a professional team with rich experience in machne's apperance design and manufacturing.

Q: What is your terms of payment ?
A: L/C,D/A,D/P,T/T,Western Union.
