GWIEC Wenzhou China Products 4 strings Solar PV Combiner Box For Energy System

GWIEC Wenzhou China Products 4 Strings
  • Seller Yueqing Greenwich Imp And Exp Co., Ltd.
  • Min. Order 100 Piece/Pieces Solar Combiner Box
  • FOB Price US $10-300 /Piece

Item Details

Port: Ningbo
Supply Ability: 10000 Piece/Pieces per Week Contactor free sample contact us
Payment Terms: L/C,T/T,Western Union

Product Description

You are in:>>>>PV Combiner Box

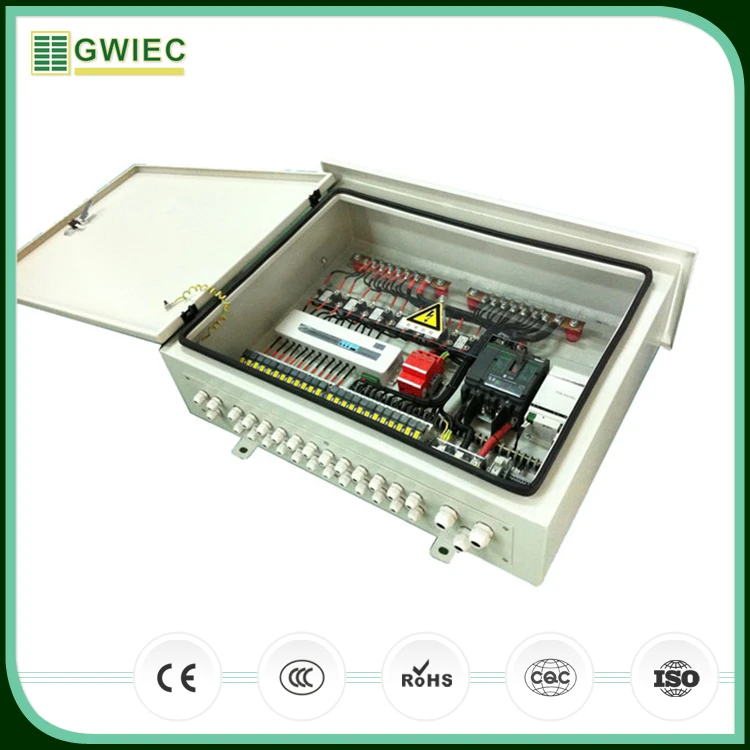

GWIEC Wenzhou China Products 4 strings Solar PV Combiner Box For Solar Energy System

Product Description

Application:

  • Ip65 protection level,can be installed outdoor,Have multiple string connections;each of them has reliable fuse,as well as protection and isolation functions
  • Both positive and negative terminals have reliable DC high-voltage lightning protection devices;Both positive and negative terminals adopt respectively serial

    connected quadrupole circuit breaker to enhance the ability of withstanding the high DC voltage

  • Be able to monitor the power production of each string,breaker and lightning protection device;Monitoring information can be displayed on LED and transmitted

    by Rs485 and network

  • Intelligent Monitoring Device can be powered completely byork solar power without external power source;Normal operation temperature ranges from-35℃~60℃

  • String numbers and function unit can be customized according to customer’s request

Specification:

model(EPV-) 04CBM 06CBM 08CBM 10CBM 12CBM 16CBM 18CBM 20CBM 24CBM
Input Voltage Range (V) 200-1000
String No. 4strings 6strings 8strings 10strings 12strings 16strings 18strings 20strings 24strings
Max.Current of each string (A) 1-20
Max.Output Current (A) 63 80 100 125 160 200 250 250 250
Standard Configuration Positive Pole Fuse/Negative Pole Fuse/Output Breaker/Lightning Protection Device/Water-proof Cable Connector
Optional Configuration Anti-reverse Diode/Current Monitoring Function/Voltage Monitoring Function/Breaker Monitoring/Lightning Protection Monitoring
IP Protection Level IP65
Working Environment Temperature:-35℃~60℃ Humidity:0-99%

Electrical Block Diagram:

Related Products

GWIEC is specialized in manufacturing in contactor,circuit breakers,thermal overload relays and magnetic starters,etc.

Company Information

GWIEC attaches great importance of Product Quality and Safety Production Process. Our company has passed ISO Certificates. Our products are listed by CQC, CE, RoHS certificates.

GWIEC will insist her belief "Quality is Brand"to bring "Better Quality, Better Service and Better Price"to customers, our goal is to maximize your profit and bring mutual success to both of us!

Certifications

GWIEC attaches great importance of Product Quality and Safety Production Process. Our company has passed ISO Certificates. Our products are listed by CQC, CE, RoHS certificates. we supply for global factories and distributors which are experienced in filed electric products and green energy. Just like Europe, South America, Russia, Asia etc.

OUR TEAM

FAQ

1.Could I put my own logo on it?

> Sure, customers' logo can be made by laser, engraved, embossed, transfer printing etc.

2.Should I pay extra for logo printing ?

> Normally usd 0.017/per color,according to the actual situation.

3.How about the quality ?

> Acquire the CE & SGS Certification.

> 100% QC in produce process and before package.

4.Could I buy 1pc sample first and small order ?

> Of course, support sample order and small order, especially for new customers under certain condition

5.How much for 1pc sample ?

>Some cheap ones may free for 1pcs but need to see the actual stock.

6.If I have my thoughts, do you have person to design according to my concept?

> Certainly,our design team is willing to do for you.

7.How long to make a sample?

> 2-5 days which depends on the samples' complexity.

8.Is the sample fee refundable or not?

> Sure, refundable once order confirmed.

With more than 15 years OEM experience, we can provide professional solutions for customers.
