60W Power Supply Board Electrical Equipment
  • Seller Shenzhen Gofern Electronic Co., Ltd.
  • Min. Order 20 Metric Ton/Metric Tons
  • FOB Price US $6.5-8 /Metric Ton

Item Details

Port: shenzhen
Supply Ability: 100000 Piece/Pieces per Month electrical equipment supplies
Payment Terms: T/T,Western Union,MoneyGram,paypal

Product Description

60W power supply board electrical equipment supplies

Input: Input voltage: 85~264VAC

Ouput: 13.5V 4.5A DC
Frequency: 47-63Hz
Inrush Current: Cold start <30A/230V
Drain current: <0.5Ma/230VAC
Output: Linearity regulation: ±0.5% max
Ripple & yawp: (mVp_p) <1% output voltage
Temperature factor: ±0.02%/Cº
Output adjustment range: ±10%
Startup time: ≤1S(230VAC IN, I O=100%)
Hold up time: ≥20Ms(230VAC IN, I O=100%)
Output short circuit protection: over loading 105%~150%rated output, Auto recovery
Insulation strength: Input-output: 1500VAC/1m
Input-floor: 1500VAC/1m
Output-floor: 500VAC/1m
Insulation resistance: Input-output: ≥50M 500VDC
Input-floor: ≥50M 500VDC
Output-floor: ≥50M 500VDC
Surrounding: Work condition: 0-45 Cº,20%-90%RH
Store condition: -20-85 Cº,10%-90%RH
Cooling method: Free air cooling conversion
Dimension:140*77*54(mm)

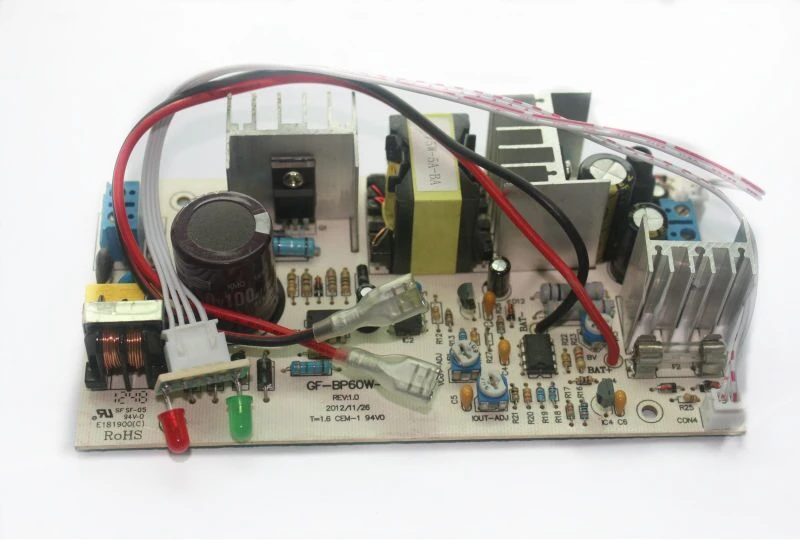

Picture Show:
